A high-speed fuse is not simply a faster version of the standard industrial fuse. It is a fundamentally different device built around a single constraint: the thermal tolerance of semiconductors. Where a typical UL-class fuse might clear a fault in half a cycle (8–10 ms), a high-speed fuse is expected to interrupt in under 2 ms, often within 1 ms, because the IGBT or diode it protects cannot absorb more than that without fracturing its silicon lattice.

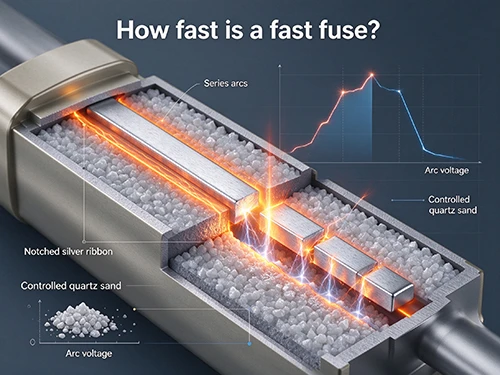

The distinction starts with the melting energy, or I²t. A 400A standard fuse for motor circuits might have a melting I²t around 80,000 A²s. A 400A high-speed fuse from the same physical footprint rarely exceeds 12,000 A²s. That sixfold reduction comes from the fuse element itself-usually a pure silver ribbon with multiple notches, rather than a tin-plated copper wire. Silver oxidizes less, but more importantly its thermal conductivity is higher, so heat spreads quickly along the ribbon, which sounds counterintuitive for fast melting. The trick lies in the notch geometry. Each notch creates a hotspot that reaches melting temperature in roughly 200 µs at 10x rated current, while the rest of the ribbon stays cool. The element then parts at multiple points simultaneously, not just one, which raises the arc voltage faster.
Consider a 150 kW traction inverter for an electric bus. The DC link capacitor bank holds 2,500 µF charged to 750V. If the IGBT fails short, the discharge current from that capacitor alone can reach 40 kA with a rise time of 5 µs. A standard fuse would let that current peak to 60 kA before opening, and the capacitor's internal foil would vaporize, taking the entire module with it. A high-speed fuse with a properly tuned arc voltage clamps that peak to 12 kA and clears the fault in 800 µs. The capacitor survives, though its ripple current rating might be slightly exceeded. That example is not theoretical-a major bus manufacturer switched to high-speed fuses after losing three inverters in field tests, each replacement costing more than the fuse itself by a factor of 200.
The arc behavior is where high-speed fuses diverge most from their slower cousins. In a standard fuse, the arc burns for several milliseconds, and the arc voltage typically sits at 1.5 to 2 times the system voltage. That allows the current to continue flowing until the natural zero crossing in AC systems. But in DC circuits, there is no zero crossing, so the fuse must force the current down by generating an arc voltage higher than the source voltage. High-speed fuses achieve 3.5 to 4 times the rated voltage during arcing, using a dense quartz sand filler that absorbs the arc energy and creates hundreds of tiny constrictions. That sand is not ordinary silica; it has a controlled grain size, usually 0.2 to 0.3 mm, and a specific moisture content below 0.5%. One supplier's internal test showed that increasing the grain size from 0.2 to 0.4 mm raised the arc voltage by 18% but also doubled the clearing time because the sand packed less densely around the element. That trade-off forces a careful balance between voltage capability and speed.
The rated current of a high-speed fuse is also deceptive. A 100A model might carry 120A indefinitely without nuisance blowing, but its melting time at 200A is only 5 seconds-much shorter than a comparable standard fuse which might hold 200A for 30 seconds. That characteristic makes them sensitive to inrush currents that are otherwise harmless. For instance, a welding power supply with a 150A high-speed fuse experienced nuisance trips during the initial capacitor precharge, which drew 180A for 1.2 seconds. The fuse opened because its melting I²t was exceeded, even though the steady-state current never reached 150A. The solution was not a larger fuse but a precharge resistor that limited the inrush to 120A for 500 ms. That sort of system-level adjustment is common; a high-speed fuse forces the designer to consider every transient, not just the steady load.
Another aspect rarely discussed is the effect of ambient temperature on clearing performance. A high-speed fuse's element is so thin that its resistance changes noticeably with temperature. At -40°C, the silver's resistivity drops by about 12% compared to 25°C, so the melting I²t actually increases-meaning the fuse takes slightly longer to open at very cold conditions. In a solar combiner box installed in a northern climate, that variation caused a 20% spread in clearing times for the same fault current. The designer had to derate the fuse by 10% to ensure that at cold start, the fuse would still protect the diodes during a reverse polarity event. That derating is not a standard rule; it comes from empirical curves that most datasheets omit.
High-speed fuses also have a limited life under repetitive surge currents. Each surge that does not melt the element still strains the notches, causing micro-cracks to develop around the stress concentration. A photovoltaic inverter that experiences daily cloud-induced current spikes of 2x rated for 50 ms can see the fuse's melting I²t drift downward by 5% per year. After three years, the fuse may open on a surge that it originally withstood. Field data from a 1 MW plant showed that replacing high-speed fuses every 18 months reduced nuisance failures by 70%, even though the fuses were still electrically intact. That maintenance interval was not in any manual; it emerged from logging every trip event over two seasons.
The choice of a high-speed fuse is never about speed alone. It is about the interaction between the fuse's arc voltage, the circuit's inductance, and the semiconductor's safe operating area. A slow fuse might protect the cable but let the transistor explode; a fast fuse might protect the transistor but trip on every motor start. The correct selection involves measuring the actual fault current waveform with a Rogowski coil and matching the fuse's I²t curve to the device's withstand curve, leaving a margin of at least 30%. I have seen designs where that margin was only 10%, and after six months of aging, the fuse and the IGBT both failed simultaneously-the fuse opened at the exact moment the silicon shorted, but the arc energy still had enough time to crack the die. That case taught me that the fuse's clearing time must be less than the semiconductor's short-circuit withstand time, but the total let-through I²t must also be below the device's critical energy. Two different constraints, one fuse.
In practice, high-speed fuses are rated for AC and DC separately, and a 500V AC rating does not translate to 500V DC. At DC, the arc extinguishes only when the fuse generates enough back-EMF to overcome the source, which requires a longer element length and more sand. A 500V DC high-speed fuse often has twice the body length of its AC counterpart for the same current. That explains why a 100A AC high-speed fuse might cost $30, while the DC version runs over $80-the manufacturing complexity and the silver content both rise. Yet in many railway auxiliary systems, they use the DC version without hesitation because a single short can disable an entire traction car for hours, and the fuse cost becomes negligible compared to downtime. That economic reality is what ultimately drives the adoption of high-speed fuses, not just their technical elegance. They are a preventive investment, and their value shows up not in the bill of materials but in the warranty claims that never happen.
