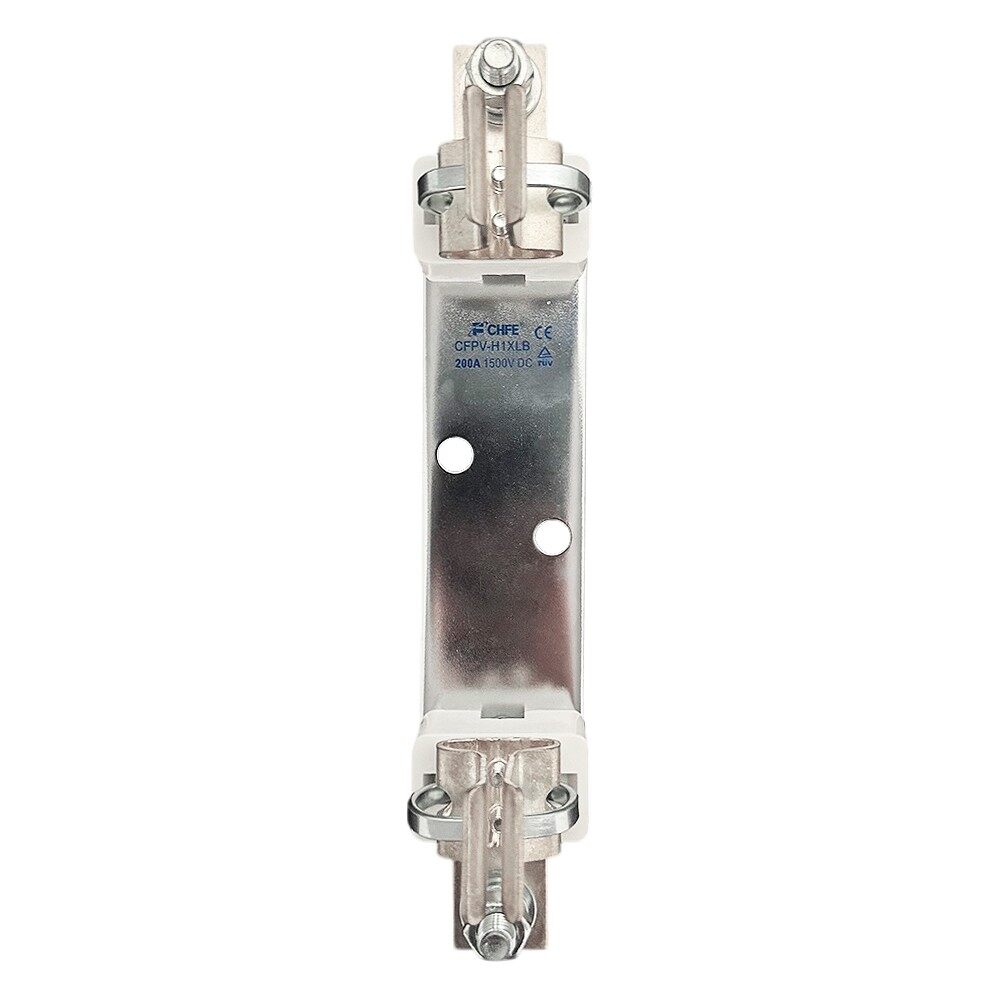

Zhejiang Chifeng Electric Co., Ltd. is one of the leading manufacturers and suppliers of cfpv-h1xlb 250a 1500v dc solar pv fuse holder in China, also supports customized service. Welcome to wholesale bulk cfpv-h1xlb 250a 1500v dc solar pv fuse holder made in China here and get quotation from our factory. For price consultation, contact us.
Description
Applied Range
High Quality Materlals
Red Copper Or Alloy Material
The base contacts are made of high-performance red copper or alloy, which can ensure the base's high conductivity, wear resistance, corrosion resistance and excellent mechanical strength.
Highly resilient steel springs maintain contact pressure during thermal cycling, preventing resistance drift.
Captive Spring Mechanisms
High Performance Iron And Resin
The fuse base is made of high-temperature-resistant resin and iron,which has excellent mechanical strength, moisture resistance and combustion resistance, and can withstand harsh environments.
Product Details
Excellent Mechanical Strength
It can withstand physical impacts, vibrations,and mechanical stresses, ensuring that the base is not easily deformed or damaged during installation or operation.
Flame resistance
The material has self - extinguishing properties or a high flame - retardant rating, reducing the fire risk and enhancing overall safety.
Optimized Heat Dissipation Design
Combined with an open - type structure, it promotes heat dissipation, reduces temperature rise, and ensures reliable operation under high - current loads.
| Parameter | |
| Product name | CFPV-H1XLB |
| Test standards | IEC60269 |
| Rated voltage ue | 1500V |
| Rated current | 250A |
| Rated breaking capacity | 50kA |
| Brand name | CHIFENG |
| Place of origin | China |
| Zhejiang | |
Professional Fuse Manufacture
35+ years professional and reliable fuse manufacture in China.
ISO 9001 certified factory with intellectualized and automated capabilities.
Complete test facilities with highly qualified experts.
Zhejiang Chifeng Electricity co., Ltd
square meters of floor area
years experience
exporting countries
employees
Exhibition
| Module | Chifeng fuse Holder | Inferior fuse Holder | Performance impact |
| Fusant material | High-performance red copper/alloy (high conductivity, wear/corrosion resistance) | Low-grade brass/iron sheet (poor conductivity, easy oxidation/corrosion/wear) | Affect the fuse accuracy and reaction speed |
| Base body | High performance Iron (high strength, high temperature resistance, corrosion resistance, stable structure) | Ordinary/recycled iron sheet (low strength, easy rust/deformation, poor high temperature resistance) | Affect insulation and arc extinguishing ability |
| Filler quality | High-grade quartz silica,Filling tightly | Ordinary quartz sand or substitute, loosely filled | Affect the arc extinguishing speed |
| Electrode material | Silver-plated copper electrode,low contact resistance | Ordinary metal, easy to oxidize | Affect temperature rise and energy consumption |
| Spring material | Highly resilient steel springs (maintain contact pressure, prevent resistance drift) | Ordinary iron springs (poor elasticity, quick tension loss, causes poor contact) | prevent resistance drift |
| Performance index | Chifeng fuse Holder | Inferior fuse Holder | Potential risk |
| Current-time characteristic | Precise and stable, matching the overload characteristics of the equipment | High dispersibility and instability | Mis-protection or insufficient protection |
| Breaking capacity | High breaking capacity, strong current limiting characteristics | Insufficient breaking capacity, poor current limiting effect | The fault escalates, resulting in system power outage |
| Arc control | Rapid arc extinction (microsecond level) | Slow arc extinction (millisecond level) | Cause a fire or explosion |
| Aging characteristics | Good long-term stability | Severe characteristic drift | Reliability decreases over time of use |
| Consistency | The differences between products are small | Different performance of products from the same batch | The protection effect is unpredictable |
