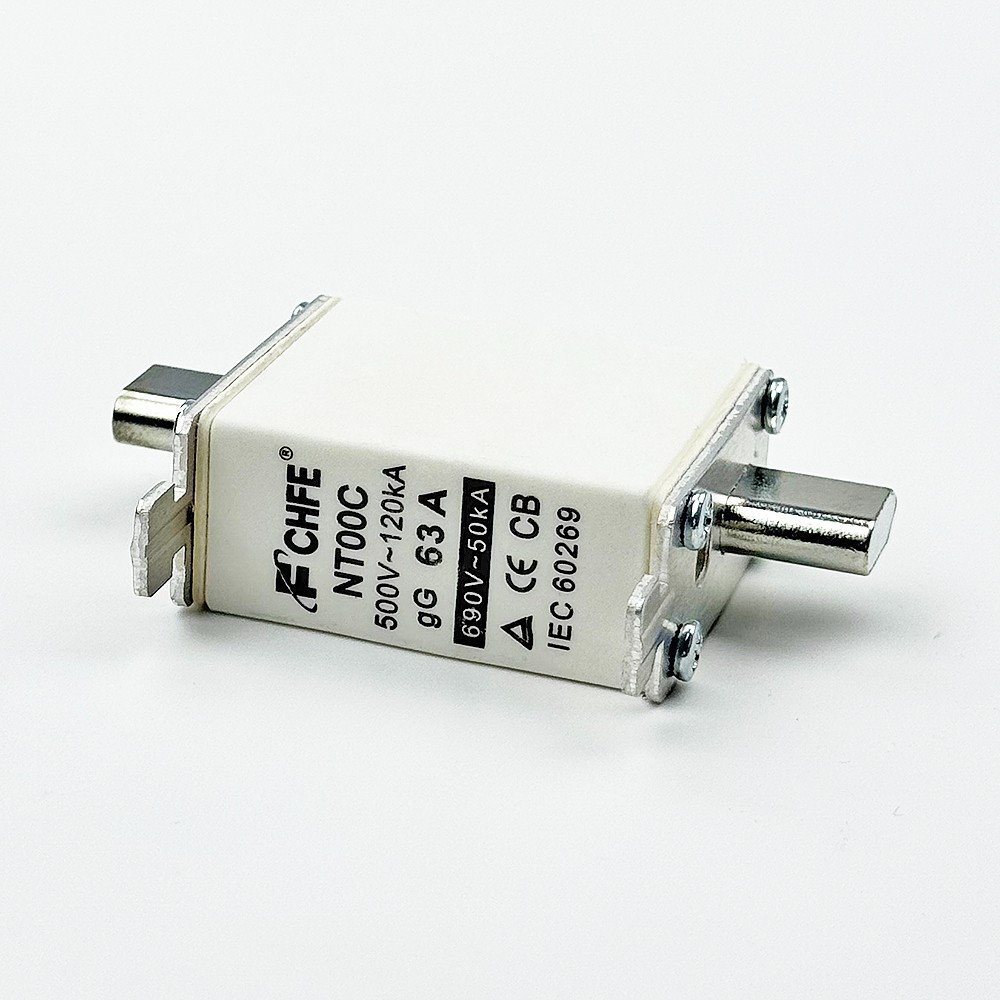

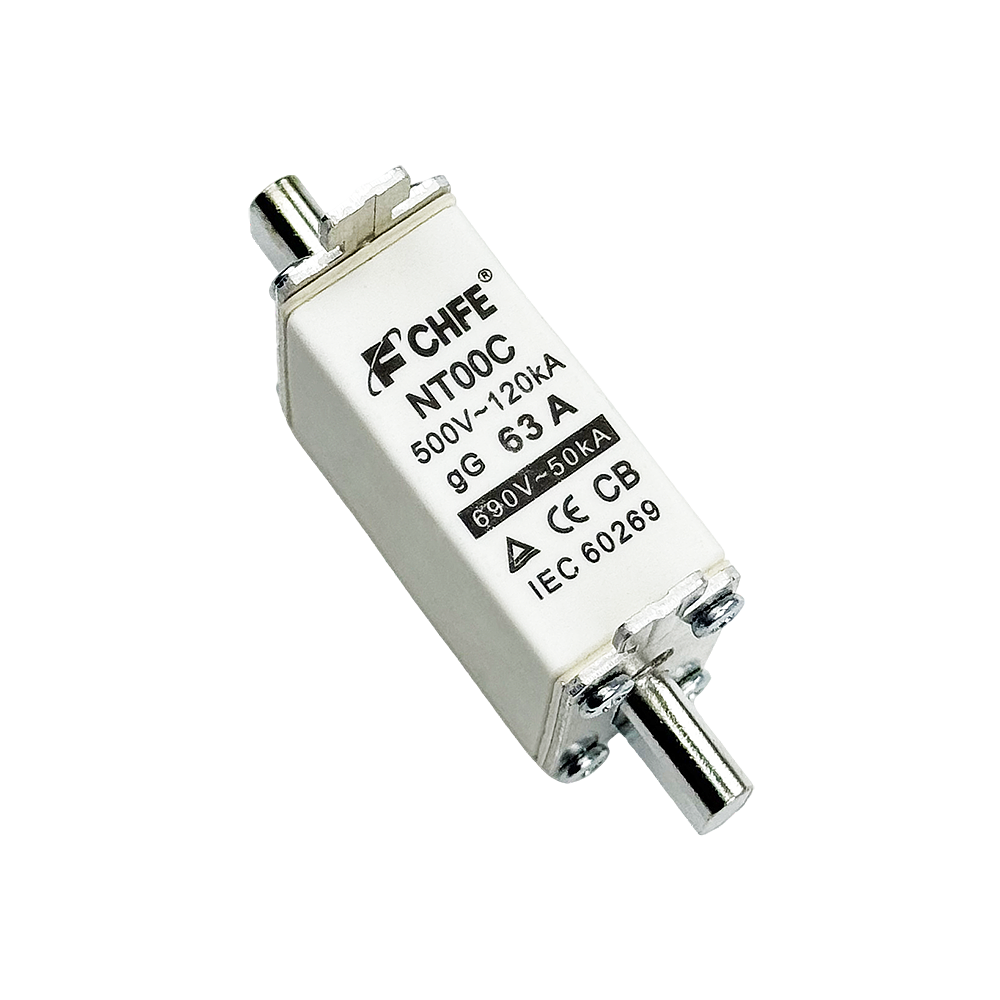

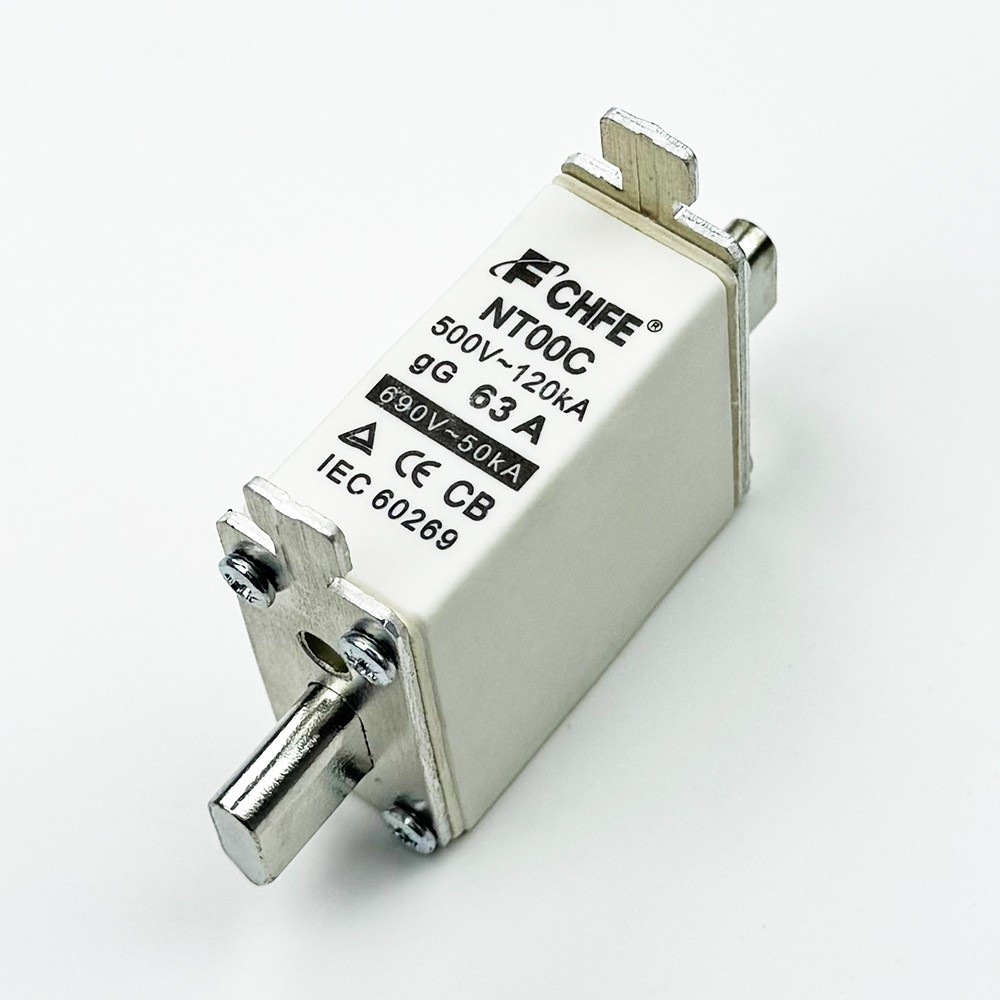

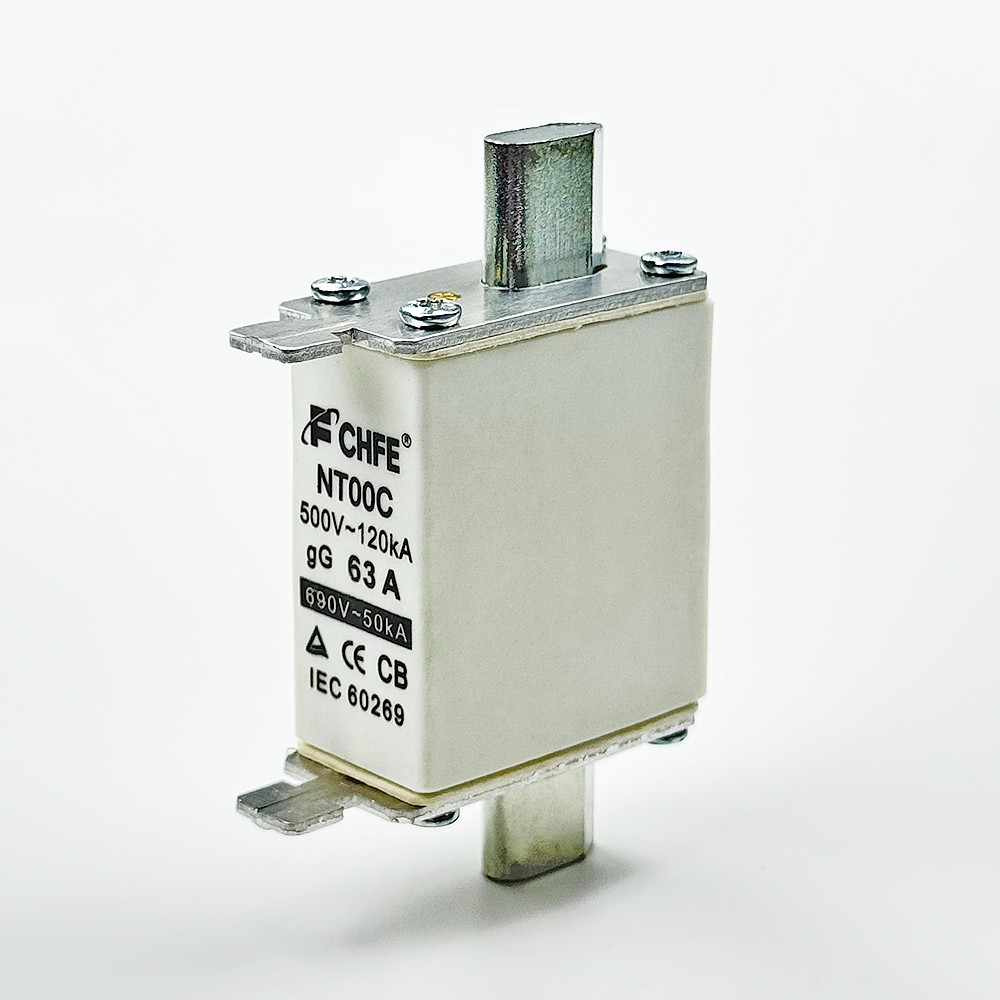

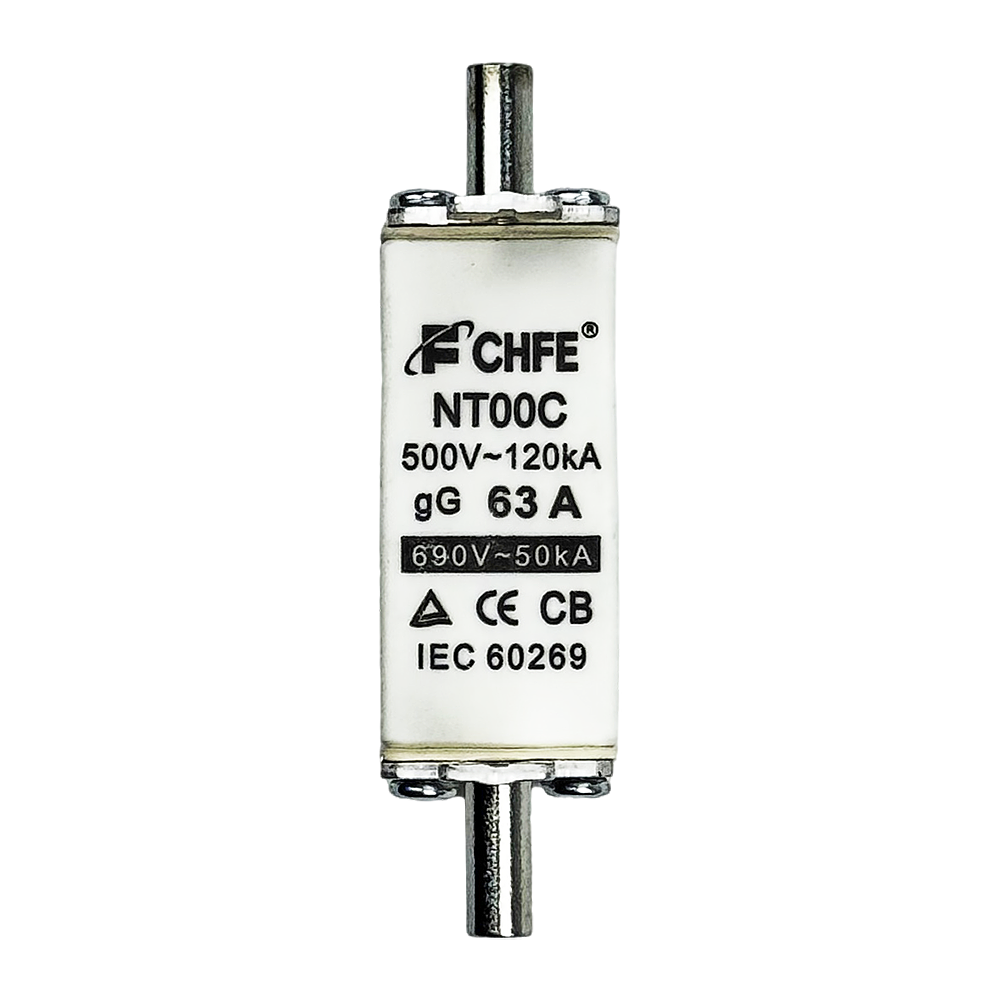

Zhejiang Chifeng Electric Co., Ltd. is one of the leading manufacturers and suppliers of square nt00c/nh00c fuse 63a gg in China, also supports customized service. Welcome to wholesale bulk square nt00c/nh00c fuse 63a gg made in China here and get quotation from our factory. For price consultation, contact us.
Product Description
Product Parameter
| Parameter | |
| Type | NT00C/NH00C |
| /Test Standards | IEC60269 |
| Rated Voltage Ue | 500V/690V |
| Rated Breaking Capacity | 120kA |
| Rated Current | 4-100A |
Might be overdoing it with points but... better comprehensive than missing something. User can always trim down. Final touch - ending with a benefits-focused tagline because marketing.
checks voltage range Yep 690VAC covers most industrial applications globally. Good.
Description
NH/NT Blade type fuse-links aM class are for motor protection.These high breaking capacity fuse-links are intended for short circuit protection in motors, transformer and other load with high inrush current. There is a standard visual indicator on the top end,and an optional on the front side.This series fuses comprises fuses from size NH000 up to NH4, with rated currents up to 1250A,rated voltage up to 690V.
Features&Benefits
Dual indication
Low temperature rise
Globally compliant
Application
Industrial fuse links for a wide variety of applications.
Specification
|
Model Number |
NH000 NH00 NH0 NH1 NH2 NH3 NH4 |
|
Ratings |
|
|
Voltage |
690Vac 500Vac |
|
CurreNH |
Up to 1250A |
|
Breaking Capacity |
120kA |
|
Operating class |
gG Fuse |
|
Standards |
GB13539.1/.2 IEC 60269-1/-2 |
|
CouNHry of Origin |
China |
Dimension
|
Model |
Rated voltage (Vac) |
Rated curreNH (A) |
Dimension |
||||
|
A |
B |
C |
D |
H |
|||
|
NH00C/NH00C |
500/690 |
4-160 |
78 |
52 |
15 |
21 |
53 |
|
NH00/NH00 |
500/690 |
4-160 |
78 |
53 |
15 |
30 |
60 |
|
NH0/NH0 |
500/690 |
6-160 |
125 |
67 |
15 |
30 |
60 |
|
NH1/NH1 |
500/690 |
32-250 |
135 |
72 |
20 |
48 |
65 |
|
NH2/NH2 |
500/690 |
80-400 |
150 |
72 |
25 |
58 |
72 |
|
NH3/NH3 |
500/690 |
160-630 |
150 |
74 |
32 |
67 |
82 |
FAQ
Q:Do aM NH type fuses have to be marked with green color?
A:Yes, according to IEC 60269-2, the color of aM fuses should be green.
Q:Are dual-indicating NH fuses mandatory or optional?
A:Dual indicator system is optional for NH fuse.
Q:What does NH mean?
A:NH is the German abbreviation, N means low pressure, H means high breaking capacity.
