Zhejiang Chifeng Electric Co., Ltd. is one of the leading manufacturers and suppliers of nt00 nh00 square fuse 160a ceramic copper in China, also supports customized service. Welcome to wholesale bulk nt00 nh00 square fuse 160a ceramic copper made in China here and get quotation from our factory. For price consultation, contact us.

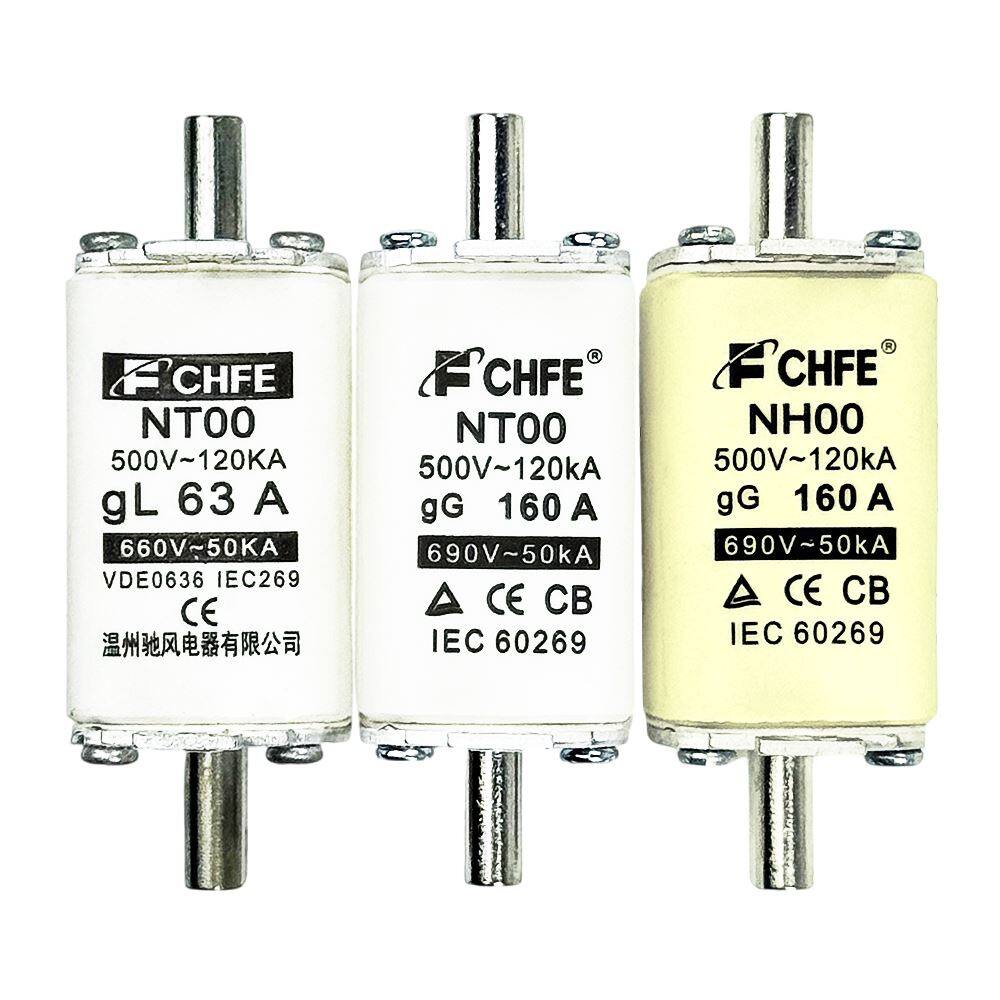

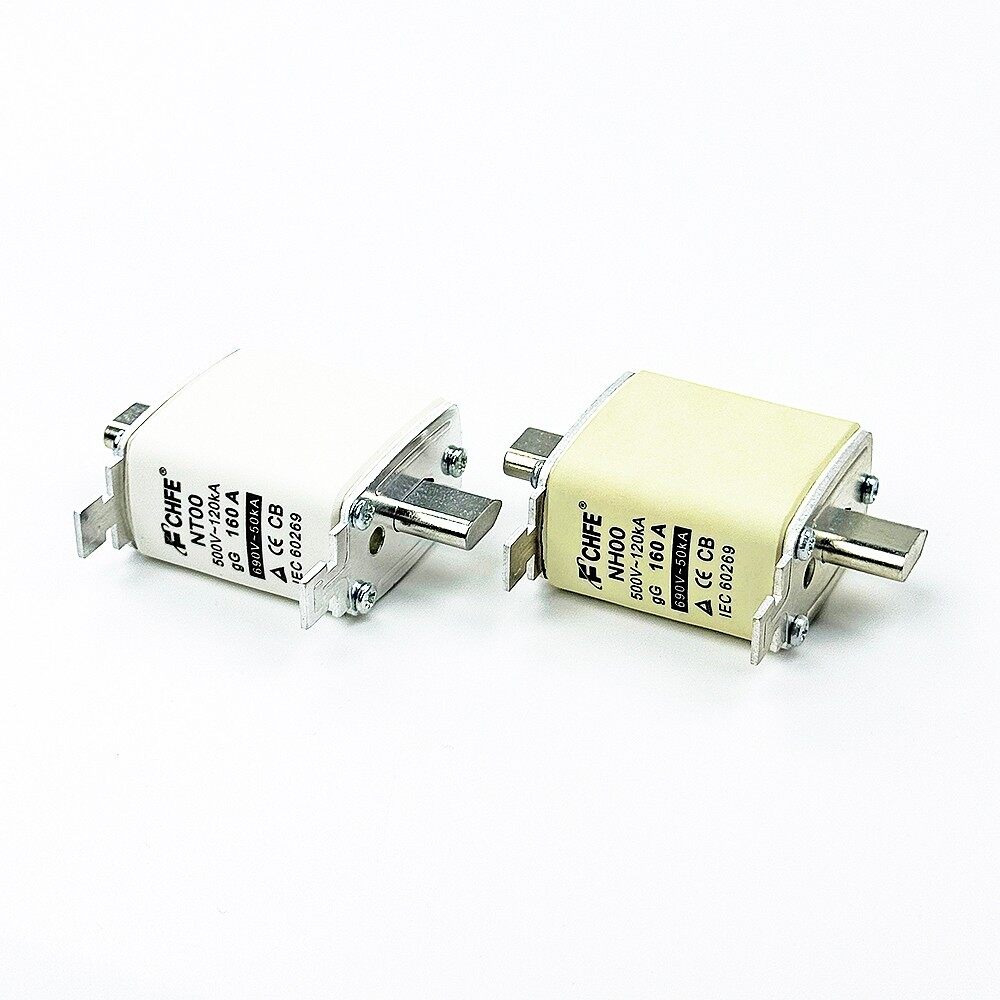

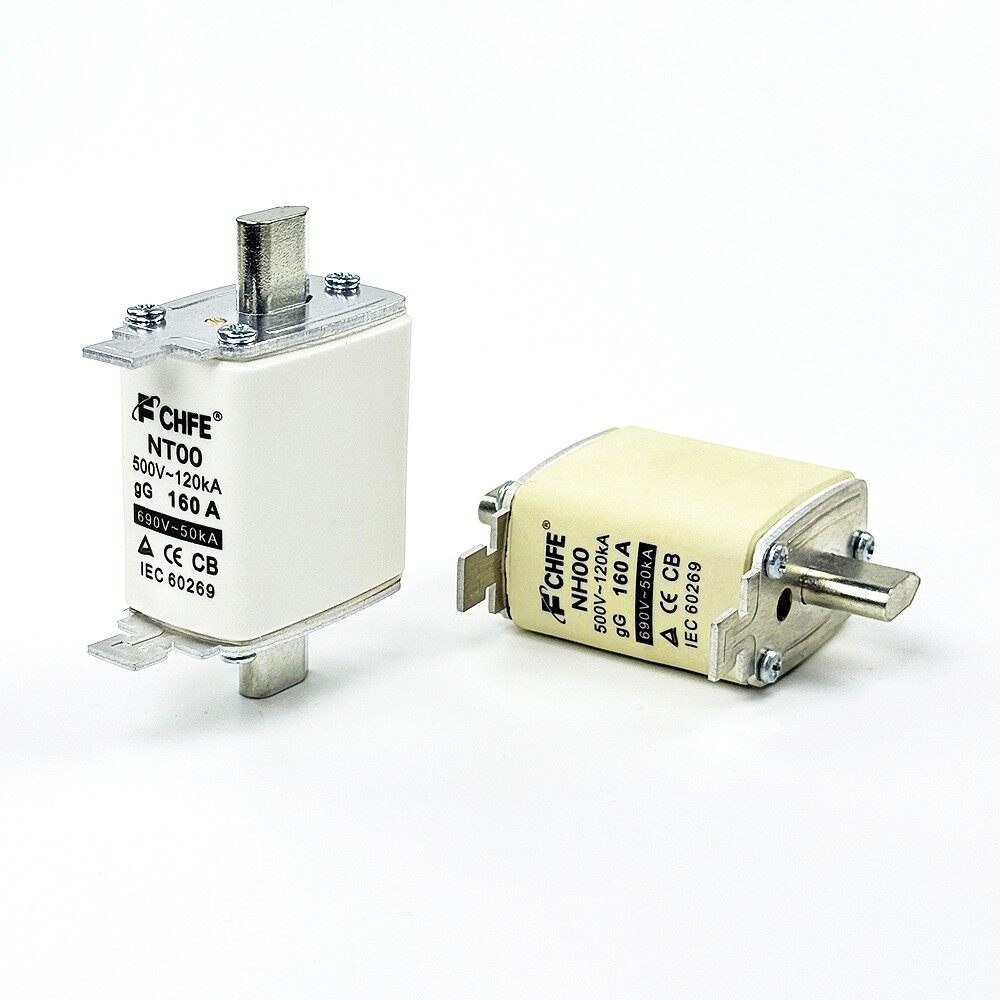

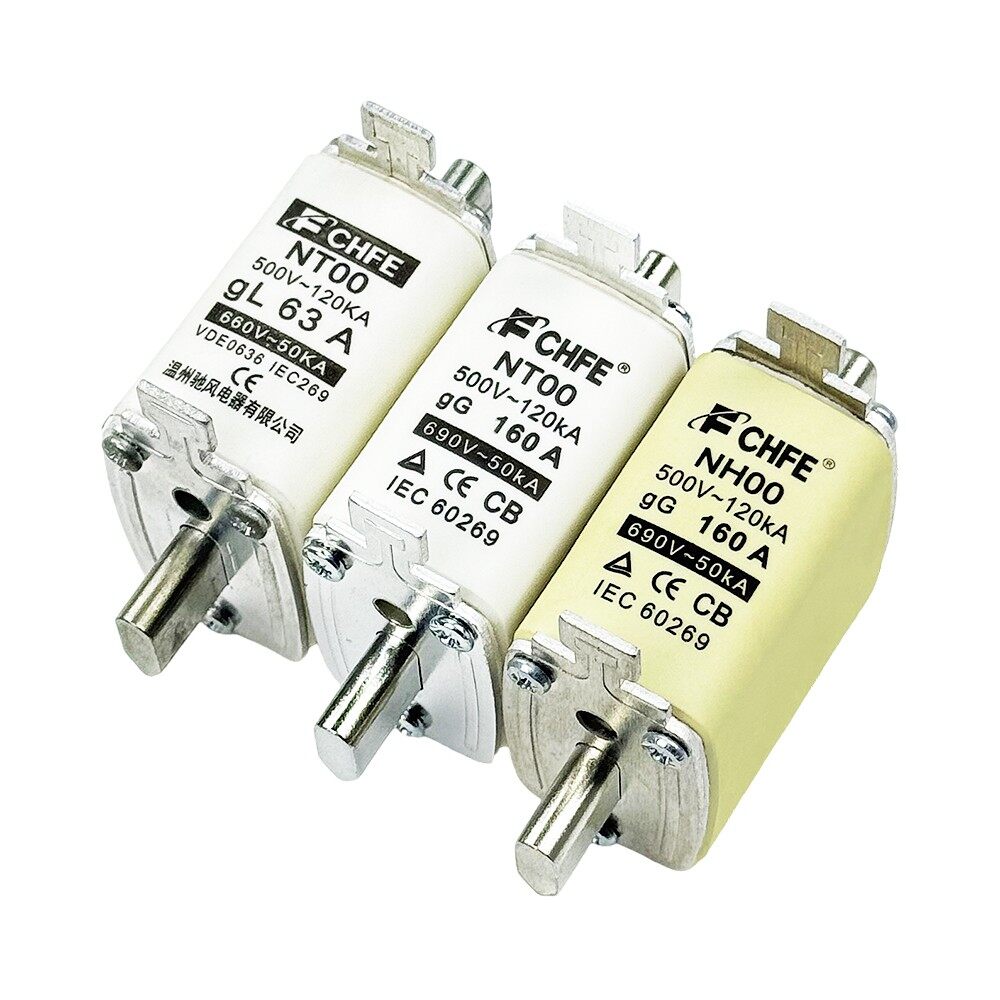

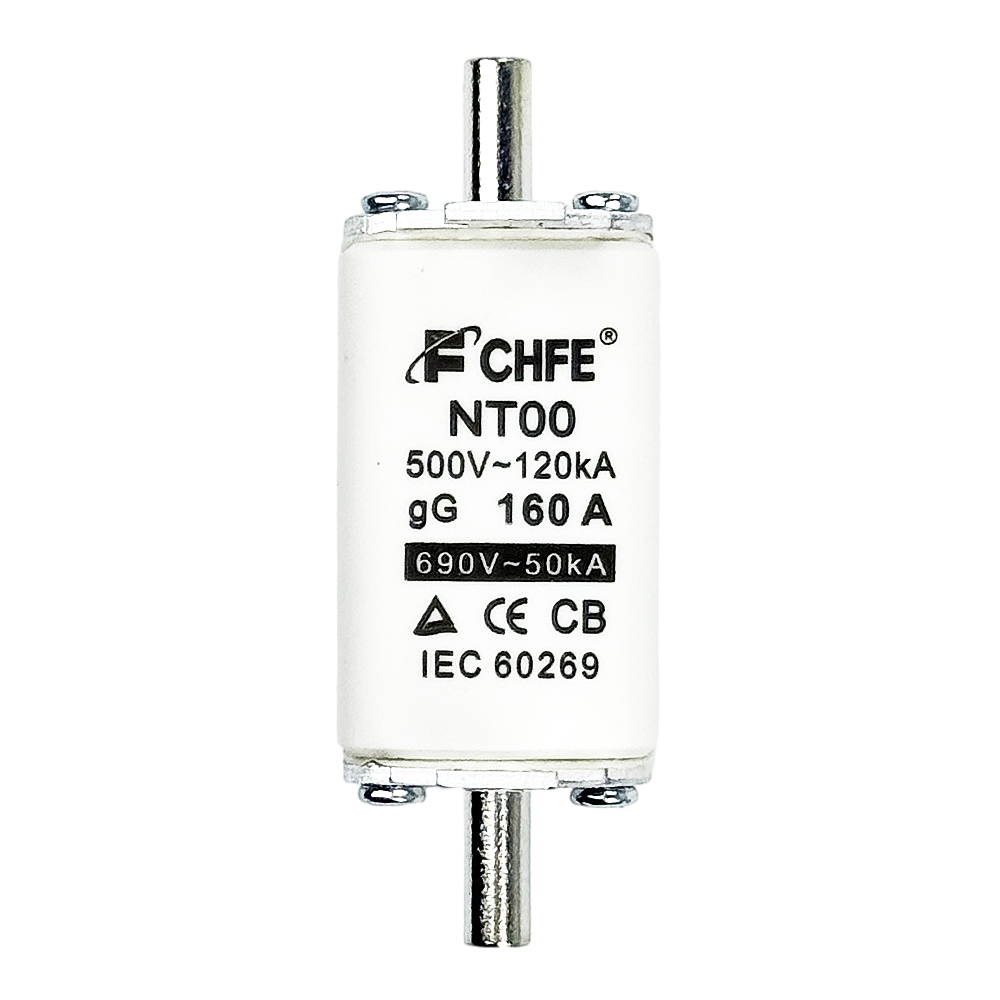

NH NT RT16 63A 100A 125A 160A 200A 250A 300A 400A 500A 630A HRC Fuse Link and Fuse Base
Description
Low power loss NH(NT) fuses & fuse bases for industrial protection, conform to Class GL/GG and Class aM,gR,aR.General industrial
applications or for the protection of motor circuits.
Version with voltage free metal gripping lugs for insulated fuses.Light yellow ceramic available.
Technical Data
Rated Voltage:400VAC,500VAC,690VAC,440VDC,550VDC
Rated Currents:63A,80A,100A,125A,135A,150A,160A,200A,250A,315A, 355A, 400A
Breaking Capacity:500V-120kA,690V-80kA
Function Level:gG/gL\gtr\aM\gM\aR
Standards:IEC60269,EN60269,GB13539
Applied Range
High Quality Materlals
High Purity Copper Material
The fuse element made of high purity copper metal material has the advantages of high electrical conductivity, good stability, low power consumption and low temperature rise.
The arc-extinguishing medium of the fuse is high-grade quartz silica. The advantage of this material is that it can extinguish the arc generated during the operation of the fuse, providing better heat resistance and higher arc discharge resistance.
High Grade Quartz Sand
High Performance Ceramics
The fuse body is made of high- performance ceramics, which has theadvantages of high temperature resistance, high insulation, high mechanical strength, and chemical inertness.
Product Details
| Parameter | |

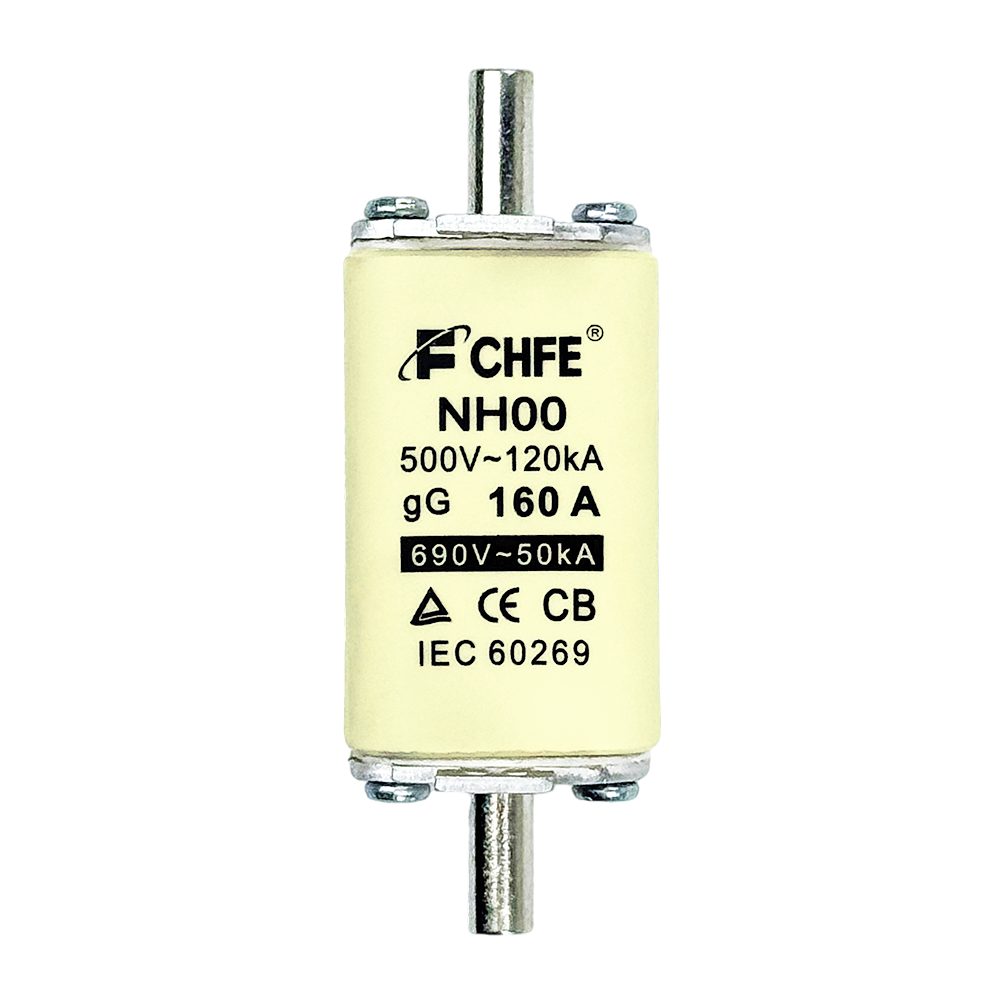

| Product name | NH00 |
| Type | NH Series |
| Class of operation | gG,gL,aM |
| Test standards |
IEC60269 |
| Usage | Low Voltage |
| Rated voltage ue | 500V / 690V |
| Rated current | 10-160A |
| Rated breaking capacity |
120kA / 50kA |
| Brand name | CHIFENG |
| Place of origin | China |
| Zhejiang | |
Professional Fuse Manufacture
35+ years professional and reliable fuse manufacture in China.
ISO 9001 certified factory with intellectualized and automated capabilities.
Complete test facilities with highly qualified experts.
Zhejiang Chifeng Electricity co., Ltd
Zhejiang Chifeng Electric Co.,Ltd. is a professional manufacture for fuses. The company is locatedin Liushi, Wenzhou --the Capital of Low Voltage Electric in China, covering an area of over than 3000 square metres with registered capital of 10 million; and integrating r&d, manufacturing and sales, withstrong technical force, advanced manufacturing and testing equipment.
Founded in 1988, Chifeng has evolved to be a competitive fuse brand in China with well-established and growing platforms in electrical circuit protection technologies. We offer the industry's broad portfolio of fuse products, and we focus on solar markets while expanding into adjacent new energy markets. 35 years of innovation and unwavering commitment to customer service enable us to provide objective, comprehensive, and personalized customer solutions.
square meters of floor area
years experience
exporting countries
employees
Exhibition
| Module | Chifeng fuse | Inferior fuse | Performance impact |
| Fusant material | High purity copper | Lead-tin alloy, common copper wire | Affect the fuse accuracy and reaction speed |
| Sheathing material | High-performance ceramics | Ordinary ceramics, recycled plastics | Affect insulation and arc extinguishing ability |
| Filler quality | High-grade quartz silica,Filling tightly | Ordinary quartz sand or substitute, loosely filled | Affect the arc extinguishing speed |
| Electrode material | Silver-plated copper electrode,low contact resistance | Ordinary metal, easy to oxidize | Affect temperature rise and energy consumption |
| Performance index | Chifeng fuse | Inferior fuse | Potential risk |
| Current-time characteristic | Precise and stable, matching the overload characteristics of the equipment | High dispersibility and instability | Mis-protection or insufficient protection |
| Breaking capacity | High breaking capacity, strong current limiting characteristics | Insufficient breaking capacity, poor current limiting effect | The fault escalates, resulting in system power outage |
| Arc control | Rapid arc extinction (microsecond level) | Slow arc extinction (millisecond level) | Cause a fire or explosion |
| Aging characteristics | Good long-term stability | Severe characteristic drift | Reliability decreases over time of use |
| Consistency | The differences between products are small | Different performance of products from the same batch | The protection effect is unpredictable |
Manufacturing Technique
Professional R&D and production equipment
In order to enhance the R&D and testing capabilities, the company is equipped with advanced equipment, such as the fuse Electrical characteristics testing machine, high low temperature humidity test chamber machine, puncture test machine etc. These experimental equipments meet the needs of R&D analysis and performance testing of circuit protection components.
In order to meet the needs of circuit protection in different areas, on the one hand, rely on the material technology and product R&D, on the other hand, rely on the production management and production equipment. Our company has automatic metal stamping machine machine, automatic filling sand machine, automatic printing machine etc.
laboratory
X-Ray Fluorescence Spectrometer for Sample Composition Analysis
Precision Copper Component Machining Line
Fully Automated Fusible Strip Production System
High-Purity Quartz Silica Refining and Precision Processing Line
Fully Automated Precision Electroplating System
High-Precision
Stamping Press
Automatic injection
molding machine
assembly section
Quality inspection area
Advanced production technology
①
Raw material storage
②
Fuse production
③
mechanical stamping
④
Injection moulding
⑤
Electroplating coating
⑥
Filling and sealing of arc extinguishing materials
⑦
Assembly of semi-finished products
⑧
Finished product assembly
⑨
Finished product inspection
⑩
Packaging and Transportation
FAQ
Q:Do aM NH type fuses have to be marked with green color?
A:Yes, according to IEC 60269-2, the color of aM fuses should be green.
Q:Are dual-indicating NH fuses mandatory or optional?
A:Dual indicator system is optional for NH fuse.
Q:What does NH mean?
A:NH is the German abbreviation, N means low pressure, H means high breaking capacity.
