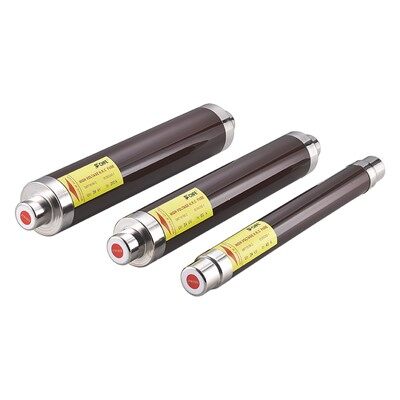

Zhejiang Chifeng Electric Co., Ltd. is one of the leading manufacturers and suppliers of xrnt series 12kv 24kv 36kv high voltage fuse in China, also supports customized service. Welcome to wholesale bulk xrnt series 12kv 24kv 36kv high voltage fuse made in China here and get quotation from our factory. For price consultation, contact us.
Applied Range
High Quality Materlals
High Purity Copper Material
The fuse element made of high purity copper metal material has the advantages of high electrical conductivity, good stability, low power consumption and low temperature rise.
The arc-extinguishing medium of the fuse is high-grade quartz silica. The advantage of this material is that it can extinguish the arc generated during the operation of the fuse, providing better heat resistance and higher arc discharge resistance.
High Grade Quartz Sand
High Performance Ceramics
The fuse body is made of high- performance ceramics, which has theadvantages of high temperature resistance, high insulation, high mechanical strength, and chemical inertness.
Product Details
Low Power Consumption And Low Temperature Rise
It can withstand physical impacts, vibrations,and mechanical stresses, ensuring that the base is not easily deformed or damaged during installation or operation.
High Short-Circuit Breaking Capacity
Interrupt currents up to 40 kA.
Robust Construction
Durable ceramic/epoxy housings and weather-resistant designs ensure longevity in harsh environments.
| Parameter | |

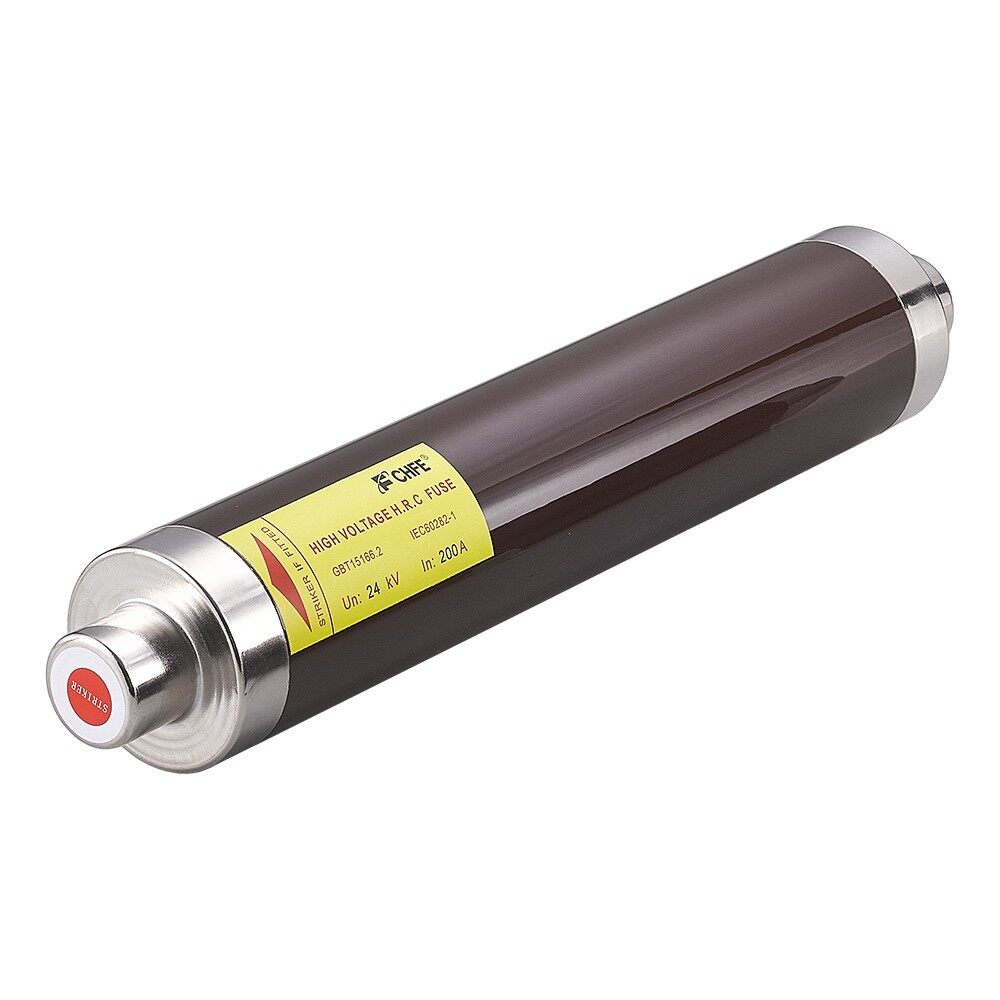

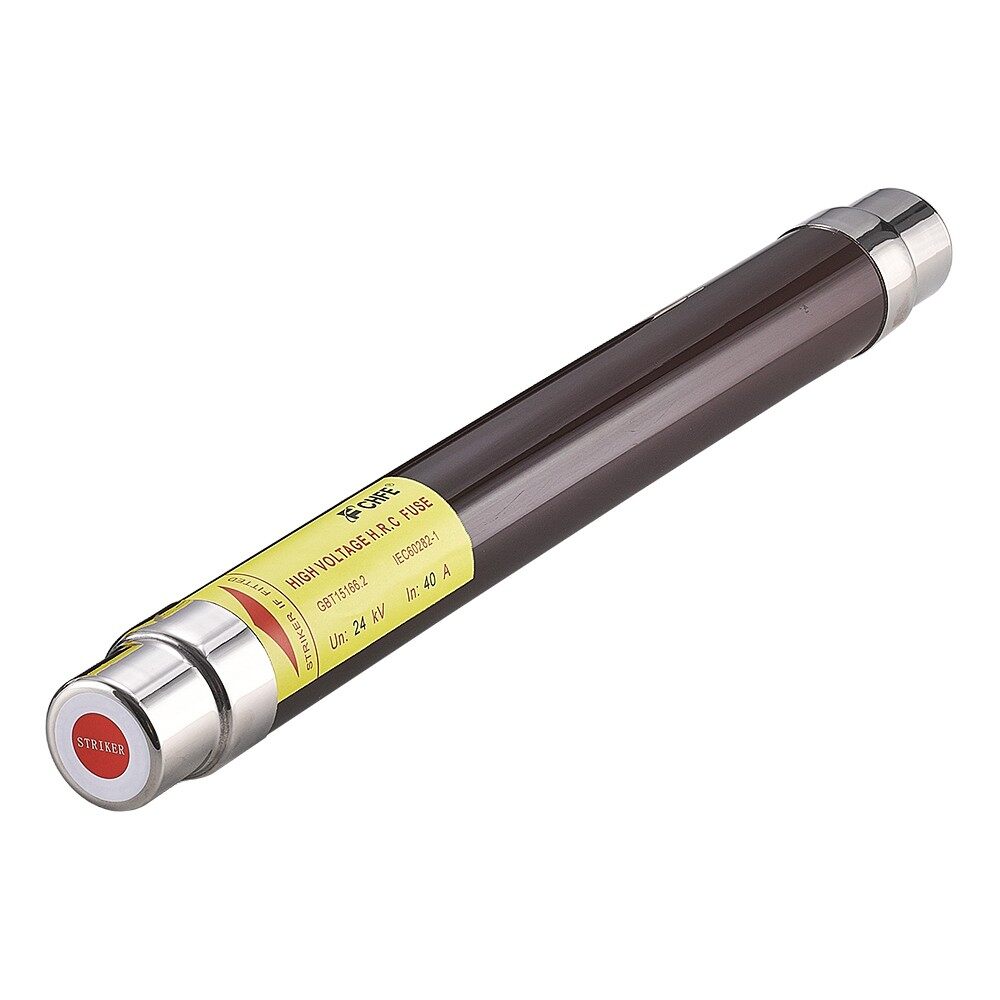

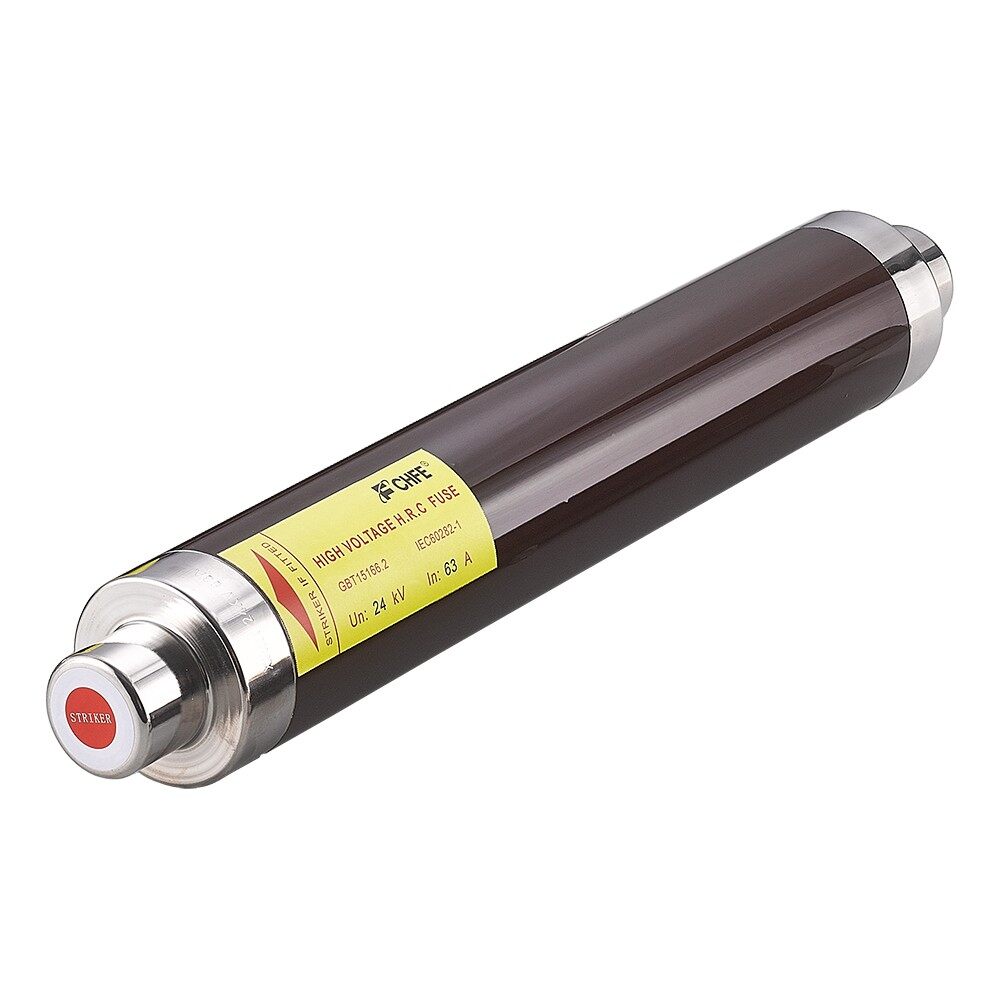

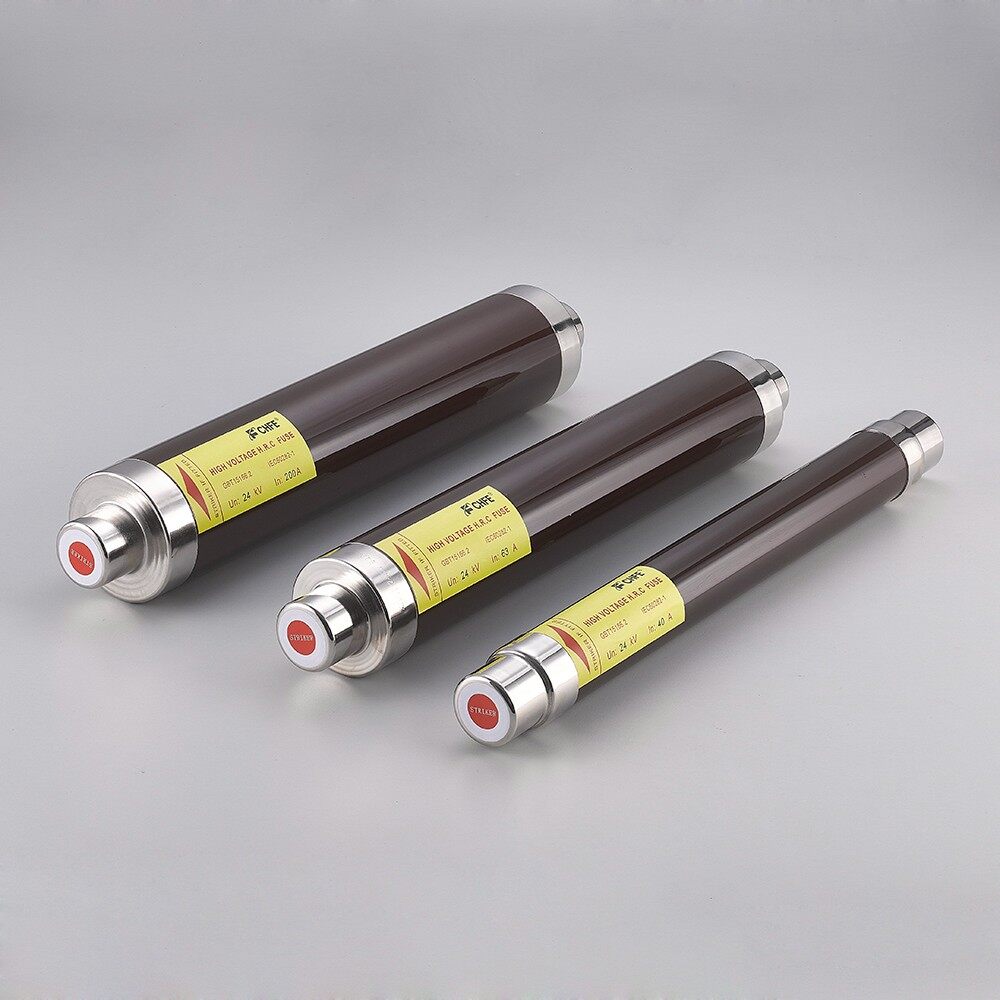

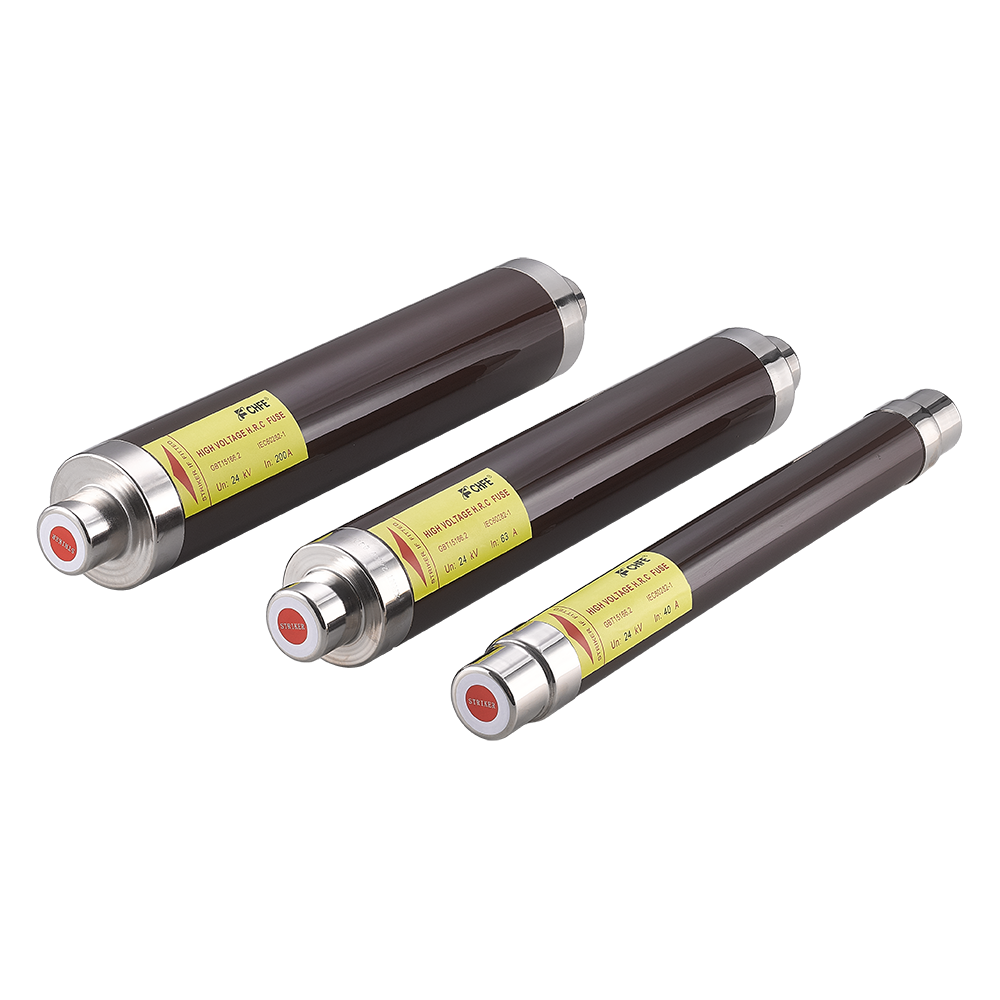

| Product name | XRNT Series |
| Test standards | IEC60282-1/GBT15166.2 |
| Rated voltage ue | 10kV/12kV/20kV/24kV/36kV/40.5kV |
| Rated current | 2-200A/6.3-200A/2-125A |
| Rated breaking capacity | 31.5kA/50kA/40kA |
| Brand name | CHIFENG |
| Place of origin | China |
| Zhejiang | |
Professional Fuse Manufacture
35+ years professional and reliable fuse manufacture in China.
ISO 9001 certified factory with intellectualized and automated capabilities.
Complete test facilities with highly qualified experts.
Zhejiang Chifeng Electricity co., Ltd
square meters of floor area
years experience
exporting countries
employees
Exhibition
| Module | Chifeng High Voltage Fuse | Inferior High Voltage Fuse | Performance Impact |
| Fusant material | High purity copper | Lead-tin alloy, common copper wire | Affect the fuse accuracy and reaction speed |
| Sheathing material | High-performance ceramics | Ordinary ceramics, recycled plastics | Affect insulation and arc extinguishing ability |
| Filler quality | High-grade quartz silica,Filling tightly | Ordinary quartz sand or substitute, loosely filled | Affect the arc extinguishing speed |
| Electrode material | Silver-plated copper electrode,low contact resistance | Ordinary metal, easy to oxidize | Affect temperature rise and energy consumption |
| Performance index | Chifeng fuse Holder | Inferior fuse Holder | Potential risk |
| Current-time characteristic | Precise and stable, matching the overload characteristics of the equipment | High dispersibility and instability | Mis-protection or insufficient protection |
| Breaking capacity | High breaking capacity, strong current limiting characteristics | Insufficient breaking capacity, poor current limiting effect | The fault escalates, resulting in system power outage |
| Arc control | Rapid arc extinction (microsecond level) | Slow arc extinction (millisecond level) | Cause a fire or explosion |
| Aging characteristics | Good long-term stability | Severe characteristic drift | Reliability decreases over time of use |
| Consistency | The differences between products are small | Different performance of products from the same batch | The protection effect is unpredictable |
Manufacturing Technique
laboratory
X-Ray Fluorescence Spectrometer for Sample Composition Analysis
Precision Copper Component Machining Line
Fully Automated Fusible Strip Production System
High-Purity Quartz Silica Refining and Precision Processing Line
Fully Automated Precision Electroplating System
High-Precision
Stamping Press
Automatic injection
molding machine
assembly section
Quality inspection area
①
Raw material storage
②
Fuse production
③
mechanical stamping
④
Injection moulding
⑤
Electroplating coating
⑥
Filling and sealing of arc extinguishing materials
⑦
Assembly of semi-finished products
⑧
Finished product assembly
⑨
Finished product inspection
⑩
Packaging and Transportation
Premium High-Voltage Fuse Solutions: Uncompromising Safety, Unmatched Reliability for Critical Power Systems
In today's increasingly complex and power-hungry industrial, commercial, and utility landscapes, the reliability of electrical protection systems is non-negotiable. High-voltage fuses stand as the first line of defense against catastrophic overcurrent, short-circuit, and overload events, safeguarding expensive equipment, preventing costly downtime, and protecting personnel from life-threatening hazards. Yet, not all fuses are created equal. Inferior, low-quality fuses often masquerade as cost-effective solutions, but they carry hidden risks that can lead to system failures, fire hazards, and irreversible financial losses. At Chifeng, we engineer high-voltage fuses that redefine industry standards, combining premium materials, precision manufacturing, and rigorous testing to deliver protection you can trust, even in the most demanding operating conditions.
FAQ
Q:Do aM NH type fuses have to be marked with green color?
A:Yes, according to IEC 60269-2, the color of aM fuses should be green.
Q:Are dual-indicating NH fuses mandatory or optional?
A:Dual indicator system is optional for NH fuse.
Q:What does NH mean?
A:NH is the German abbreviation, N means low pressure, H means high breaking capacity.
