Zhejiang Chifeng Electric Co., Ltd. is one of the leading manufacturers and suppliers of cylindrical fuse link 690v 22*58mm ar 63a ceramic type for easy installation fuse link in China, also supports customized service. Welcome to wholesale bulk cylindrical fuse link 690v 22*58mm ar 63a ceramic type for easy installation fuse link made in China here and get quotation from our factory. For price consultation, contact us.
Description

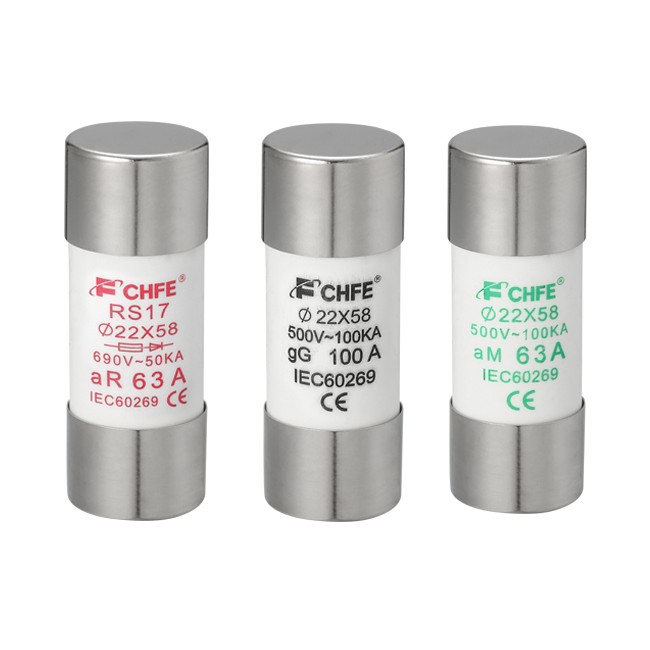

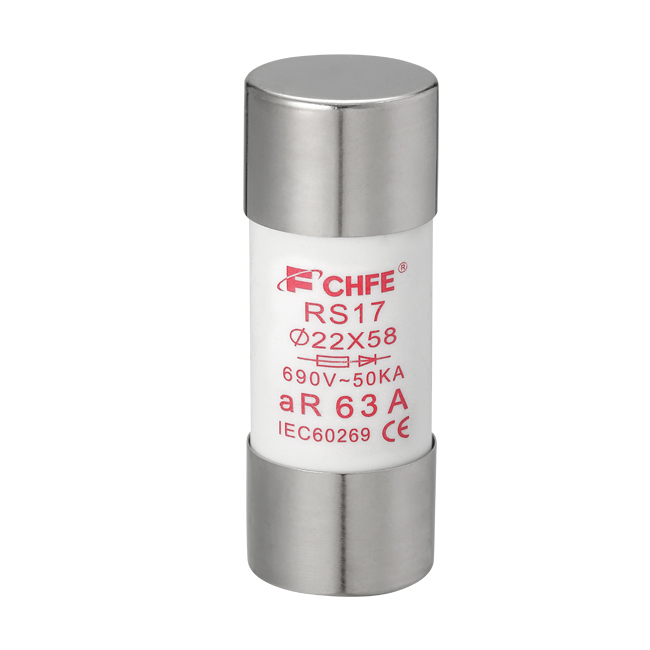

The Chifeng's cylindrical aR fuse is specially designed for semiconductor device with high breaking capacity. This fuse is comply with IEC6029.1 and IEC6029.4. This series cylindrical fuse-links have ceramic bodies and silver-plated caps with excellent and reliable performance.
Specification
|
Model Number |
22×58 Fuse |
|
Ratings |
|
|
Voltage |
690V |
|
Current |
63A |
|
Breaking Capacity |
50kA |
|
Operating class |
aR Fuse |
|
Standards Approvals |
GB/T 13539.1 GB/T 13539.4 |
|
IEC® 60269-1 IEC® 60269-4 |
|
|
CCC CE approved |
|
|
Country of Origin |
China |
Dimension
Sealed Against Contaminants:
Epoxy/porcelain enclosures prevent moisture, dust, and chemical ingress-key for harsh settings like mining equipment or marine systems.
